CANopen / CANopen FD / J1939 transmitter for strain gauge signals

µCAN.2.sg-TRS

MicroControl I/O module transmitter TRS 1-channel analogue input strain gauge full bridge
Home 9 Portfolio 9 I/O Modules 9 TRS 9 µCAN.2.sg-TRS

The cable transmitter µCAN.2.sg-TRS is the universal data acquisition module for standard analogue full bridge strain gauge signals. The bridge is powered via the transmitter. The TRS family is ideally suited for being integrated directly in the measuring lines at a short distance from the sensor.

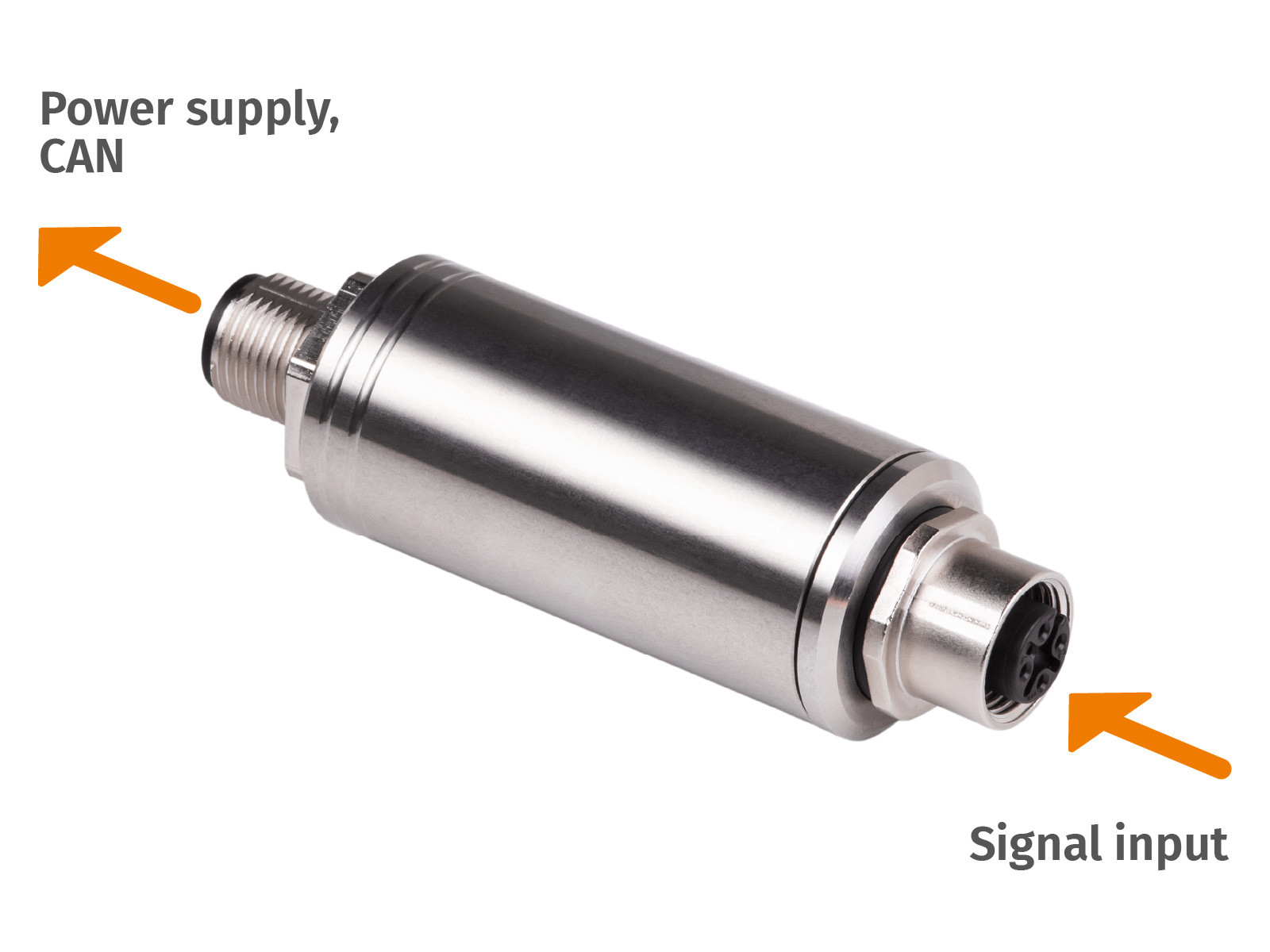

Transmitter signal input and CAN / power supply

µCAN.2.sg-TRS: acquisition of strain gauge signals at 16-bit

Features

  • Strain gauge full bridge
  • Voltage ± 30 mV
  • Supply voltage 5 V
  • Accuracy 0.2% (FS)
  • Resolution 16-bit (1 µV)
  • Sampling rate up to 1 kHz
  • Supply of the strain gauge full bridge
  • Fieldbus CAN Classic / CAN FD
  • Protocol CANopen / CANopen FD / J1939

Variants

The 2-channel TRS module is available in different variants.

Please contact us of more information and customized solutions.

Further designs

µCAN.1.sg-BOX

1-channel analogue input strain gauge

µCAN.4.sg-BOX

4-channel analogue input strain gauge

µCAN.1.sg-SNAP

1-channel analogue input strain gauge

µCAN.4.sg-F1

4-channel analogue input strain gauge

µCAN.1.sg-TRS

1-channel analogue input TRS

µCAN.1.sg-SENSOR

1-channel analogue input strain gauge

µCAN.2.sg-SENSOR

2-channel analogue input strain gauge

µCAN.1.sg-BOX

1-channel analogue input strain gauge

µCAN.4.sg-BOX

4-channel analogue input strain gauge

µCAN.1.sg-SNAP

1-channel analogue input strain gauge

µCAN.4.sg-F1

4-channel analogue input strain gauge

µCAN.1.sg-SENSOR

1-channel analogue input strain gauge

Ordering information

Item no.
Description
16.60.001
µCAN.2.sg-TRS

2-channel strain gauge acquisition module. Four-wire full bridge. Signal type max. +/- 30 mV. 5 V bridge supply. Connection via M12x1 circular connector. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

90.02.400
Y-cable distributor
90.02.401
Terminal resistor M12

Downloads

Datasheet µCAN.2.sg-TRS
2-channel analogue input strain gauge
PDF [179 KB]

Quickstart Manual TRS
2-channel analogue input strain gauge
PDF [109 KB]

Manual µCAN.2.sg-TRS
2-channel analogue input strain gauge
PDF [1.16 MB]

EDS-file
mcan2xi_sensor_v1r02.eds
EDS [49 KB]

Application Note AN1204
Setting of module ID and bit rate via LSS
PDF [204 KB]

Application Note AN5005
Multi-Protocol Devices
PDF [396 KB]

Handout Sensor Connection
PDF [88 KB]
