µCAN.8.pwm-SNAP

MicroControl I/O module SNAP rail 8 -channel PWM outputs CANopen (pulse widths)
Home 9 Portfolio 9 I/O Modules 9 SNAP 9 µCAN.8.pwm-SNAP

The µCAN.8.pwm-SNAP unit is equipped with 8 outputs which provide pulse width modulated signals (PWM) within the range of 0% to 100% for controlling of actuators (valves etc.)

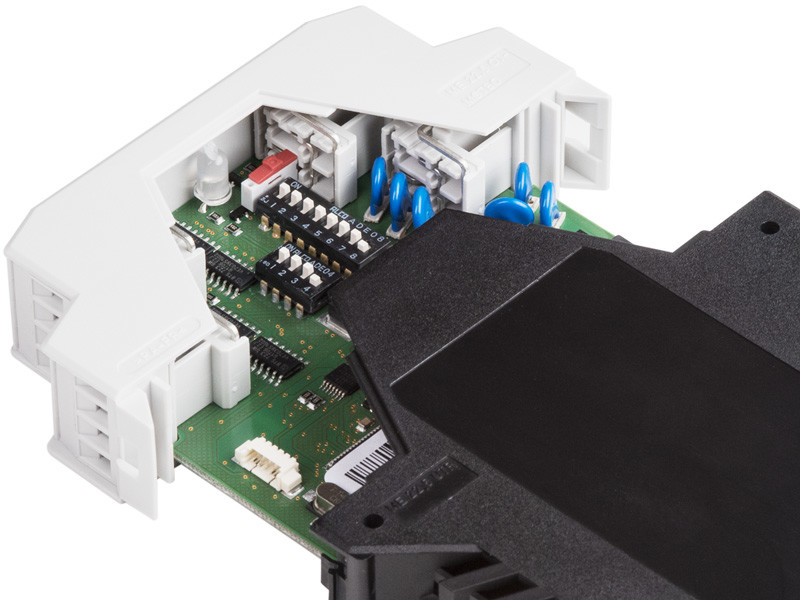

MicroControl I/O module SNAP rail 8 -channel PWM outputs CANopen - pulse width (open casing)

Emit PWM signals: µCAN.8.pwm-SNAP

Features

  • PWM output
  • Basic frequency 40 Hz … 5 kHz
  • Mark-to-space ratio 0.0 % … 100.0 %
  • Galvanically isolated fieldbus (option)
  • Each output to be charged with max. 1.4 A
  • Output drivers can be supplied separately
  • Screw connection via plug-in connectors
  • Fieldbus CAN
  • Protocol CANopen / Raw CAN

Further designs

µCAN.8.pwm-BOX

8-channel digital I/O pulse width modulation output

µCAN.8.pwm-BOX

8-channel digital I/O pulse width modulation output

Ordering information

Item no.
Description
10.87.050
µCAN.8.pwm-SNAP / no galv. isolation

8-channel pulse width output module with CANopen, no galv. isolation, for tophat rail mounting. Signal wiring via push-in connectors.

10.87.004
µCAN.8.pwm-SNAP / galv. isolation

8-channel pulse width output module with CANopen, galv. isolation, for tophat rail mounting. Signal wiring via push-in connectors.

Downloads

Datasheet µCAN.8.pwm-SNAP
8-channel digital I/O pulse width modulation output
PDF [190 KB]

EDS file
mcan8pwm_snap_v2r08.eds
EDS [19 KB]

Sample order

Get a

sample module!

Order now
