6-channel analogue input
Current / voltage

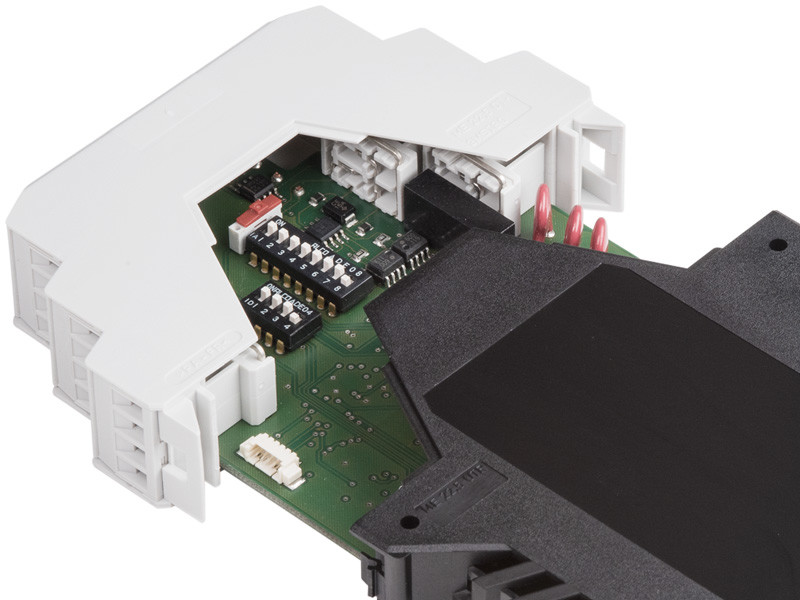

µCAN.6.ai-SNAP
The decentralized module µCAN.6.ai-SNAP is designed to acquire up to 6 analogue current / voltage signals and converts them into digital CAN signals.
µCAN.6.ai-SNAP: analogue signal acquisition
Features
- Voltage +/- 10 V
- Current 0(4)…20 mA
- Accuracy 0.02 % (FS)
- Resolution 16-bit (1 mV / 1 µA)
- Sampling rate 20 ms / 50 Hz
- Galvanically isolated fieldbus (option)
- Screw connection via plug-in connectors
- Fieldbus CAN
- Protocol CANopen / Raw CAN
Further designs
µCAN.1.ai-SNAP
1-channel analogue input current / voltage
µCAN.1.ai-BOX
1-channel analogue input current / voltage
µCAN.4.ai-BOX
4-channel analogue input current / voltage
µCAN.4.ai-F1
4-channel analogue input current / voltage
µLAB.16.ai-19"
16-channel analogue input current / voltage
µCAN.1.ai-TRS
1-channel analogue input current / voltage

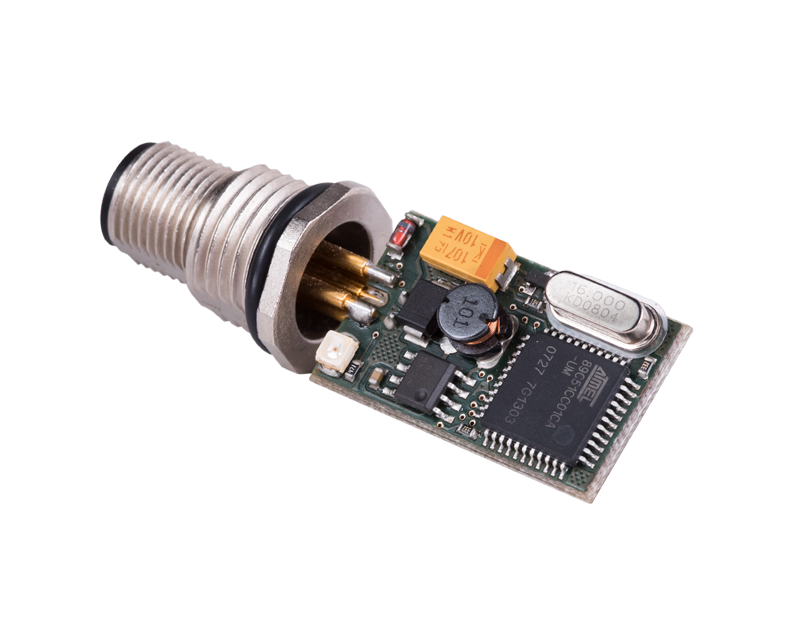

µCAN.1.ai-SENSOR
1-channel analogue input current / voltage
µCAN.1.ai-SNAP
1-channel analogue input current / voltage
µCAN.1.ai-BOX
1-channel analogue input current / voltage
µCAN.4.ai-BOX
4-channel analogue input current / voltage
µCAN.4.ai-F1
4-channel analogue input current / voltage
µLAB.16.ai-19"
16-channel analogue input current / voltage
µCAN.1.ai-TRS
1-channel analogue input current / voltage
µCAN.1.ai-SENSOR
1-channel analogue input current / voltage
Ordering information
6-channel analogue acquisition module, signal type 0(4)...20 mA, no galvanic isolation of the CAN bus. Connection via push-in connectors. Designed for DIN-rail mounting. Fieldbus: CAN. Protocols: CANopen.
6-channel analogue acquisition module, signal type 0(4)...20 mA, with galvanic isolation of the CAN bus. Connection via push-in connectors. Designed for DIN-rail mounting. Fieldbus: CAN. Protocols: CANopen.
6-channel analogue acquisition module, signal type +/- 10V, no galvanic isolation of the CAN bus. Connection via push-in connectors. Designed for DIN-rail mounting. Fieldbus: CAN. Protocols: CANopen.
6-channel analogue acquisition module, signal type +/- 10V, with galvanic isolation of the CAN bus. Connection via push-in connectors. Designed for DIN-rail mounting. Fieldbus: CAN. Protocols: CANopen.
Downloads
Datasheet µCAN.6.ai-SNAP
6-channel analogue input current / voltage
PDF [193 KB]
Manual µCAN.6.ai-SNAP
6-channel analogue input current / voltage
PDF [1 .5 MB]
EDS file (Current)
mcan6aic_snap_v1r06.eds
EDS [32 KB]
EDS file (Voltage)
mcan6aiv_snap_v1r06.eds
EDS [32 KB]
