F1 Modules –
perfectly suited for mobile data acquisition

The modules of the MicroControl F1 family offer clear advantages in mobile measurement applications with CAN bus technology. The F1 modules are used to acquire measurement data on the spot – decentralized, robust, precise. The modules are equipped with reliable Lemo plug-in connectors and an interface supporting CAN 2.0A, CAN 2.0B and Raw CAN. The compact F1 measurement modules are freely expandable and can be stacked. Due to the rugged IP65-rated casing, the modules are ideally suitable for temporary as well as mobile applications.

Logo CANopen

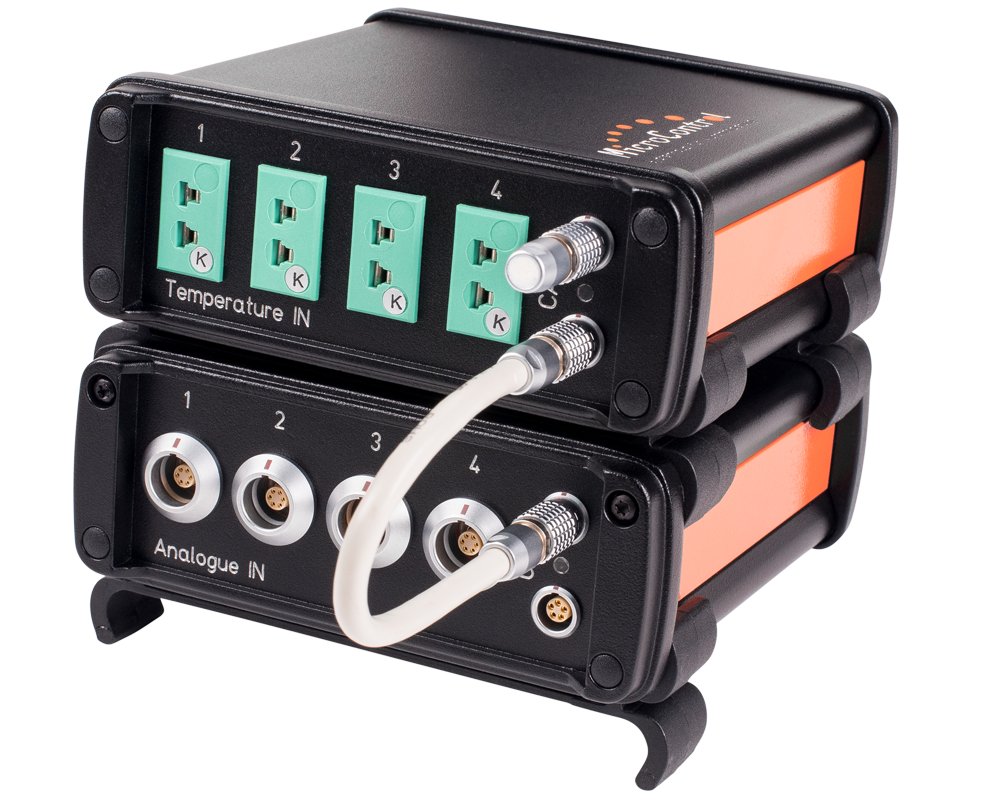

MicroControl I/O modules F1 4-channel thermo and current stacked and connected by cable

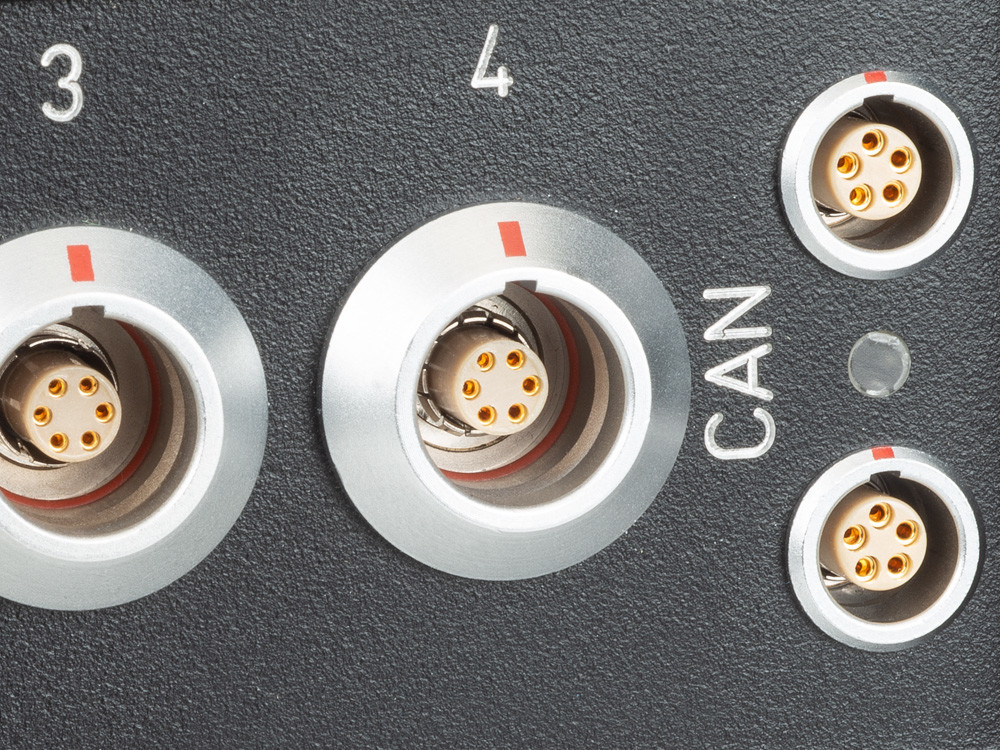

F1 module close-up of Lemo connector

For quick application

F1 module close-up of stacking element

Mobile and expandable

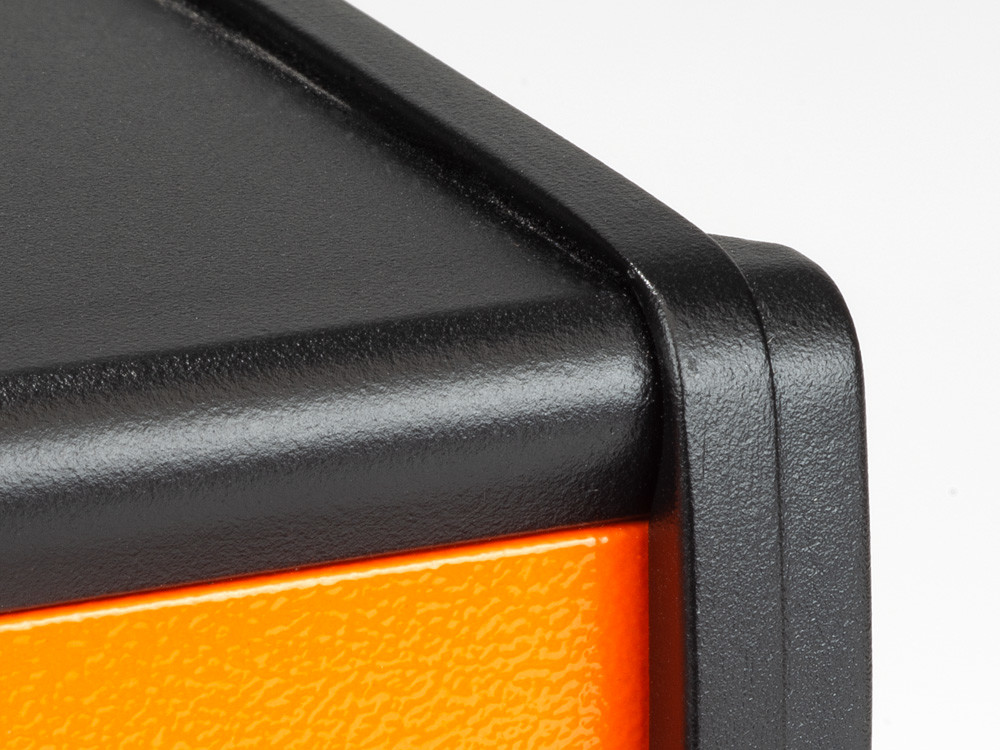

F1 module close-up of casing

Tight casing

A wide range of signal types available

The different modules of the F1 family link a variety of sensors and actuators via CAN-bus:

Signal type

  • 4-channel modules
  • Analogue inputs +/- 40 V, -20..20mA
  • Analogue inputs strain gauge
  • Temperature acquisition thermocouples
  • Temperaturerfassung Pt100,Pt200, Pt500, Pt1000
  • 24-bit
  • galvanically isolated fieldbus
  • Sampling rate adjustable
  • Scaling adjustable
  • Parameterized via set-up software
  • Synchronous transmission mode

Applications

  • mobile measurement
  • harsh environments
  • rugged design
  • Operating temperatures -40…+85 °C
  • Supply voltage 9…36 V DC
  • Aluminium casing
  • Protection class IP65
  • LED status indicator
  • Connection via Lemo plug-in connectors
  • stackable
  • CE certified

Fieldbus

  • Fieldbus CAN
  • Protokoll Raw CAN
  • Bitrate adjusted via set-up software
  • Module ID adjusted via set-up software
  • Termination via plug-in connector

µCAN-F1 family

µCAN.4.ai-F1

4-channel analogue input current / voltage

µCAN.4.sg-F1

4-channel analogue input strain gauge

µCAN.4.ti-F1

4-channel analogue input temperature

µCAN.4.ai-F1

4-channel analogue input current / voltage

µCAN.4.sg-F1

4-channel analogue input strain gauge

µCAN.4.ti-F1

4-channel analogue input temperature

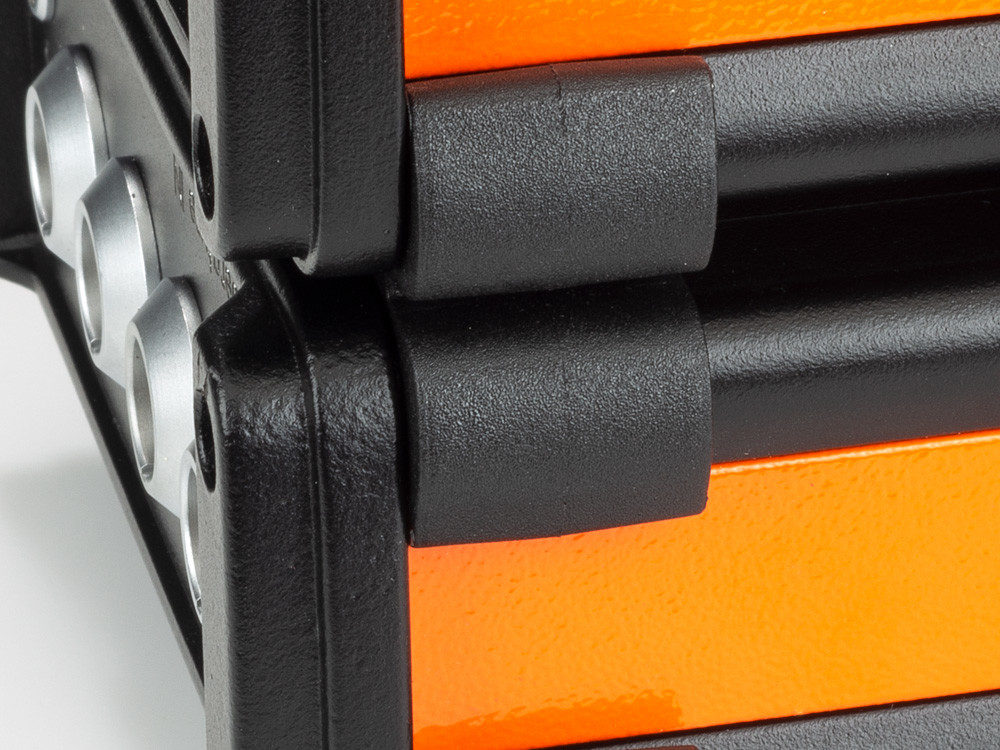

Stackable casing

An additional connecting element facilitates stacking of the F1 modules. Ready-made cables are also available.

CAN-bus interface

The modules are equipped with a CAN interface and support the standards CAN 2.0A, CAN 2.0B and CAN RAW. This facilitates integration in existing CAN-bus networks.
