8 x Digital IN/OUT

8-channel digital
Digital input or output

µCAN.8.dio-BOX

MicroControl I/O module BOX 8 digital inputs outputs CANopen
Home 9 Portfolio 9 I/O Modules 9 BOX 9 µCAN.8.dio-BOX

The 8 terminals of the µCAN.8.dio-BOX may individually be set to act as digital inputs or digital outputs. The module preprocesses and filters the digital signals. Its CAN interface supports the protocols CANopen, CANopen FD and J1939.

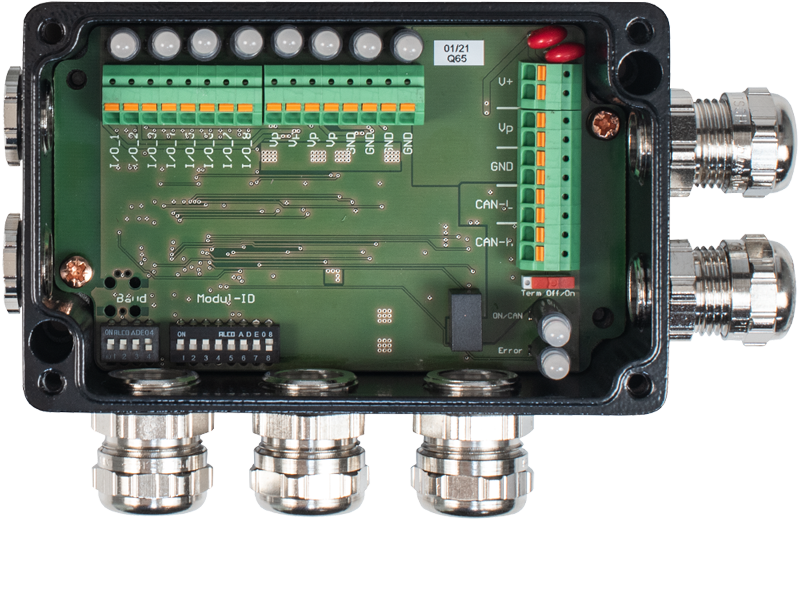

MicroControl I/O module BOX 8 digital inputs outputs CANopen (open casing)

Digital inputs or outputs: µCAN.8.dio-BOX

Features

  • Digital input or output
  • Galvanically isolated fieldbus
  • Input or output freely configurable
  • Each output to be charged with max. 1 A
  • Output drivers can be supplied separately
  • Current measurement per output
  • Status indicator for each input / output
  • Protected against mechanical impact
  • Fieldbus CAN / CAN FD
  • Protocol CANopen / CANopen FD
  • Protocol J1939 / Raw CAN

Further designs

µCAN.8.dio-SNAP

8-channel digital I/O input or output

µCAN.8.dio-SNAP

8-channel digital I/O input or output

Ordering information

Item no.
Description
12.86.054
µCAN.8.dio-BOX

8-channel digital input / output module, with galvanic isolation of the CAN bus. Connection via push-in spring terminals. Designed for metric cable glands. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939.

90.01.115
Metric cable connection kit / 8-channel field modules.

Downloads

Datasheet µCAN.8.dio-BOX
8-channel digital I/O input or output
PDF [190 KB]

Manual µCAN.8.dio-BOX
8-channel digital I/O input or output
PDF [0 .9 MB]

Quickstart Manual µCAN.8.dio-BOX
8-channel digital I/O input or output
PDF [2 .5 MB]

EDS-file
mcan8dio_box_v2r10.eds
EDS [20 KB]

Application Note AN3001
Hardware diagnosis of µCAN.8.dio-BOX
PDF [308 KB]
