4-channel analogue input
Temperature acquisition

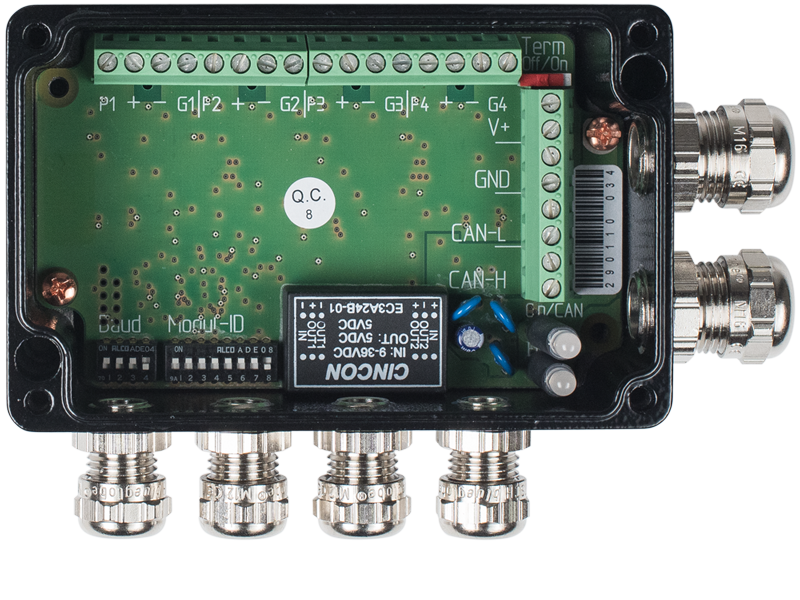

µCAN.4.ti-BOX
The µCAN.4.ti-BOX features 4 inputs for measuring temperature sensors such as RTD and thermocouples with 400 Hz total sampling rate. The CAN interface supports the protocol CANopen.
µCAN.4.ti-BOX: Temperature acquisition 4-channel
Features
- Temperature Thermo type J, K, N, R, T
- Temperature Pt100, Pt200 (2- / 4-wire)
- Temperature Pt500, Pt1000 (2- / 4-wire)
- Accuracy +/- 0.1 K
- Resolution 16 bit (0.1 °C)
- Sampling rate 10 ms / 400 Hz
- Galvanically isolated fieldbus
- Equipped with cold-junction compensation
- Signal type freely configurable
- Protected against mechanical stress
- Fieldbus CAN
- Protocol CANopen / Raw CAN
Further designs
µCAN.1.ti-BOX
1-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.4.ti-F1 / thermocouples
4-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µLAB.16.ti-19" / thermocouple
16-channel analogue input temperature
µLAB.16.ti-19" / RTD
16-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.2.ti-TRS
2-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
µCAN.2.ti-SENSOR
2-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.1.ti-BOX
1-channel analogue input temperature
µCAN.4.ti-F1 / thermocouples
4-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µLAB.16.ti-19" / thermocouple
16-channel analogue input temperature
µLAB.16.ti-19" / RTD
16-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
Ordering information
4-channel temperature signal acquisition module for J, K, N, R, T type thermocouples and resistance temperature detectors Pt100, Pt200, Pt500, Pt1000, with galvanic isolation of the CAN bus. Signal wiring via screw terminals. Designed for metric cable glands. Fieldbus: CAN. Protocol: CANopen.
