1-channel analogue input
Temperature acquisition
µCAN.1.ti-BOX
The µCAN.1.ti-BOX is the single channel solution for measuring temperatures. Resistance sensors as well as thermocouples may be connected to the module. The CAN interface supports the protocol CANopen.

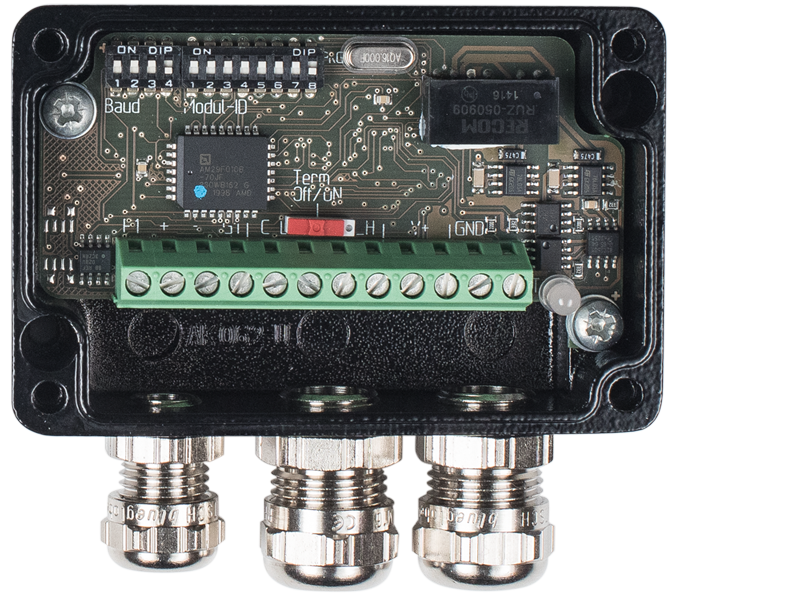

Precise measurement of temperatures: µCAN.1.ti-BOX
Features
- Temperature Thermo type J, K, L
- Temperature Pt100 (2- / 4-core)
- Accuracy +/- 0.5 K (Thermo)
- Accuracy +/- 0.1 K (Pt100)
- Resolution 16-bit (0.1 °C)
- Sampling rate 20 ms / 50 Hz
- galvanically isolated fieldbus
- Signal type freely configurable
- Electronics protected up to 40 G (option)
- Vibration resistant up to 4.5 Grms (option)
- Fieldbus CAN
- Protocol CANopen / Raw CAN
Further designs
µCAN.4.ti-BOX
4-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.4.ti-F1 / thermocouples
4-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µLAB.16.ti-19" / thermocouple
16-channel analogue input temperature
µLAB.16.ti-19" / RTD
16-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.2.ti-TRS
2-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
µCAN.2.ti-SENSOR
2-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.4.ti-BOX
4-channel analogue input temperature
µCAN.4.ti-F1 / thermocouples
4-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µLAB.16.ti-19" / thermocouple
16-channel analogue input temperature
µLAB.16.ti-19" / RTD
16-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
Ordering information
1-channel module for the acquisition of temperature signals with CANopen. Signal types thermocouple type J, K, L and Pt100. 16 bit resolution. Designed for metric cable glands. Signal wiring via screw terminals.
1-channel thermal data acquisition module with CANopen, J type thermo plug-in connector, CAN and power supply via Sub-D 9 poles.
1-channel thermal data acquisition module with CANopen, K type thermo plug-in connector, CAN and power supply via Sub-D 9 poles.
Downloads
Datasheet µCAN.1.ti-BOX
1-channel analogue input temperature
PDF [251 KB]
Manual µCAN.1.ti-BOX
1-channel analogue input temperature
PDF [1 .2 MB]
CANopen
EDS mcan1ti_box.eds
EDS [10 KB]
