16 x Analogue IN

CANopen 19″-Slide-in
Module for Voltage Measurement

µLAB.16.ai-19″

MicroControl I/O module 19"-slide-in 16-channel analogue input voltage
Home 9 Portfolio 9 I/O Modules 9 19″-System 9 µLAB.16.ai-19″ / voltage

Equipped with CAN or CANopen interfaces and a 19″ slide-in casing, the MicroControl µLAB is particulary suitable for measuring electric, thermal and mechanic signals in engine or components testing facilities. The signal wires are connected to the module by plug-in connectors in the front plate.

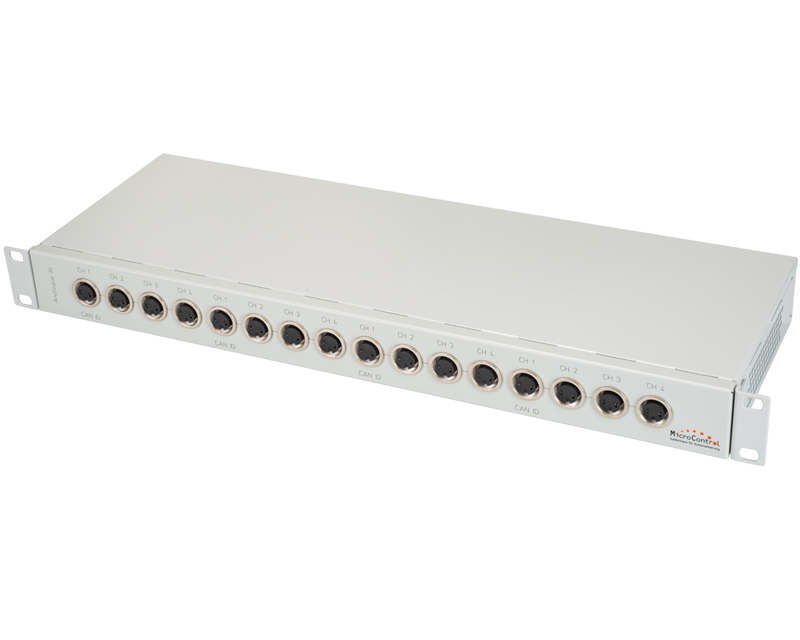

MicroControl I/O module 19"-slide-in 16-channel analogue input open casing

µLAB.16.ai-19″: Data acquisition in a 19″ slide-in module

Features

  • Voltage +/- 10 V
  • Accuracy 0.01% (FS)
  • Resolution 16-bit (1 µA)
  • Sampling rate 5ms / 200 Hz
  • Galvanically isolated fieldbus
  • Operating temperatures -40…+85 °C
  • Supply voltage 9…36 V DC
  • Connection via circular plug-in connectors
  • Fieldbus CAN
  • Protocol CANopen / Raw CAN
