Modules 19″ –
International Rack Technology

With its standard 19″ casings the µLAB product family is particularly suitable for a wide range of industrial and experimental research and testing tasks and offers high packing density, flexibility of connection equipment and may be combined with different operating and display terminals.

The MicroControl µLAB is equipped with raw CAN / CANopen or J1939 and is ideally suited to measure electrical, thermal and mechanical values in engine and components testing facilities.

MicroControl I/O Module 19"-slide in 16-channel analogue input for acqusition of Pt100 temperature signals open casing
Logo CANopen

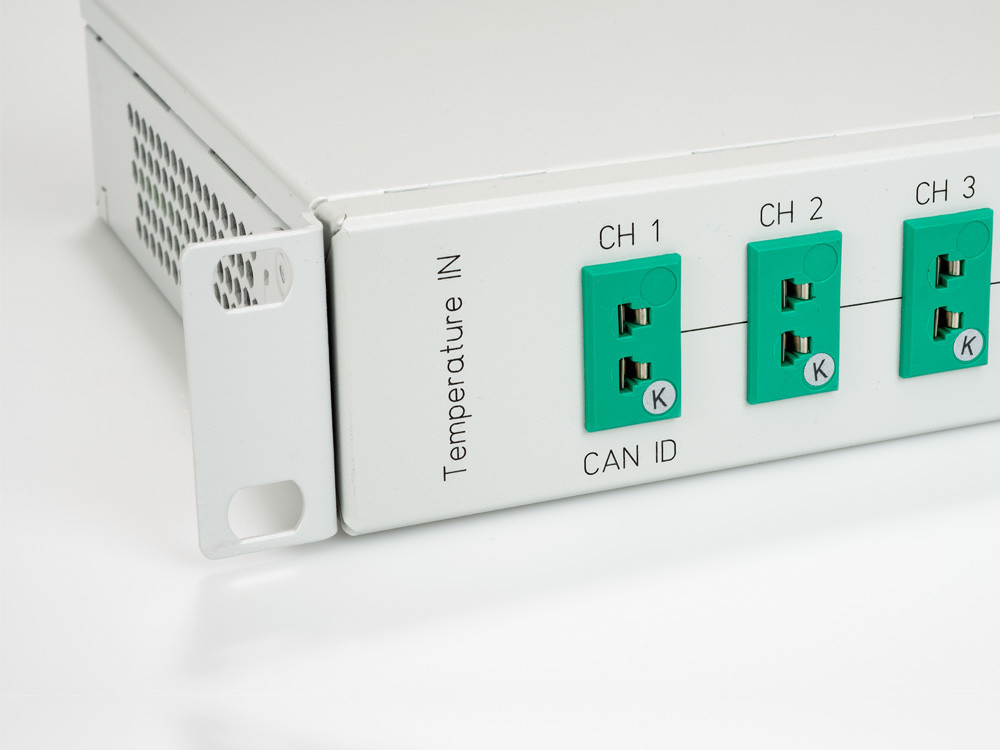

MicroControl I/O Module 19"-slide in 16-channel analogue input for acqusition of Pt100 temperature signals close-up of connectors

Clear connector layout

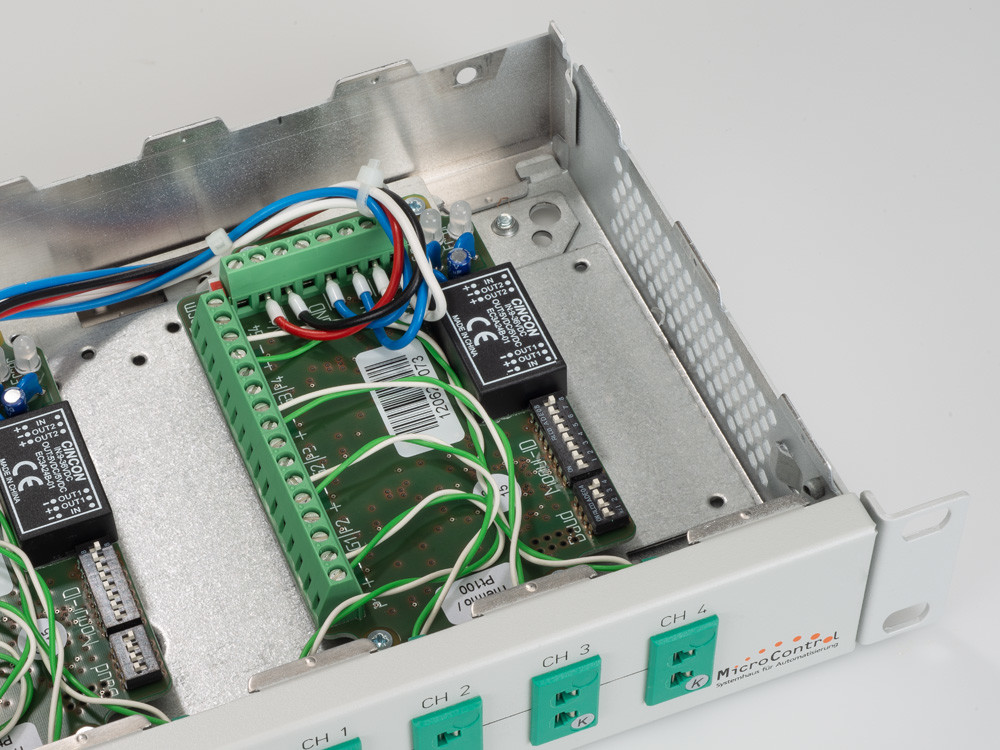

MicroControl I/O Module 19"-slide in 16-channel analogue input for acqusition of Pt100 temperature signals interior view of PCB

High packing density

MicroControl I/O Module 19"-slide in 16-channel analogue input for acqusition of temperature signals thermo K inputs

Plugable sensor connections

Variants and Features

Signal type

  • 16-channel modules
  • Analogue inputs +/- 10 V, 0(4)…20 mA
  • Analogue outputs +/- 10 V, 0…20 mA
  • Temperature acquisition thermocouples
  • Temperature acquisition resistance temperature detector
  • Resolution 16-bit

Usage

  • Module monitoring by heartbeat function
  • Galvanically isolated fieldbus
  • Test bench
  • 19″ technology
  • IP20 ranked
  • CE certified

Fieldbus

  • Fieldbus CAN
  • Protocol CANopen / Raw CAN
  • Bitrate set via DIP-switch
  • Module ID set via DIP switch / LSS
  • Termination set via DIP switch

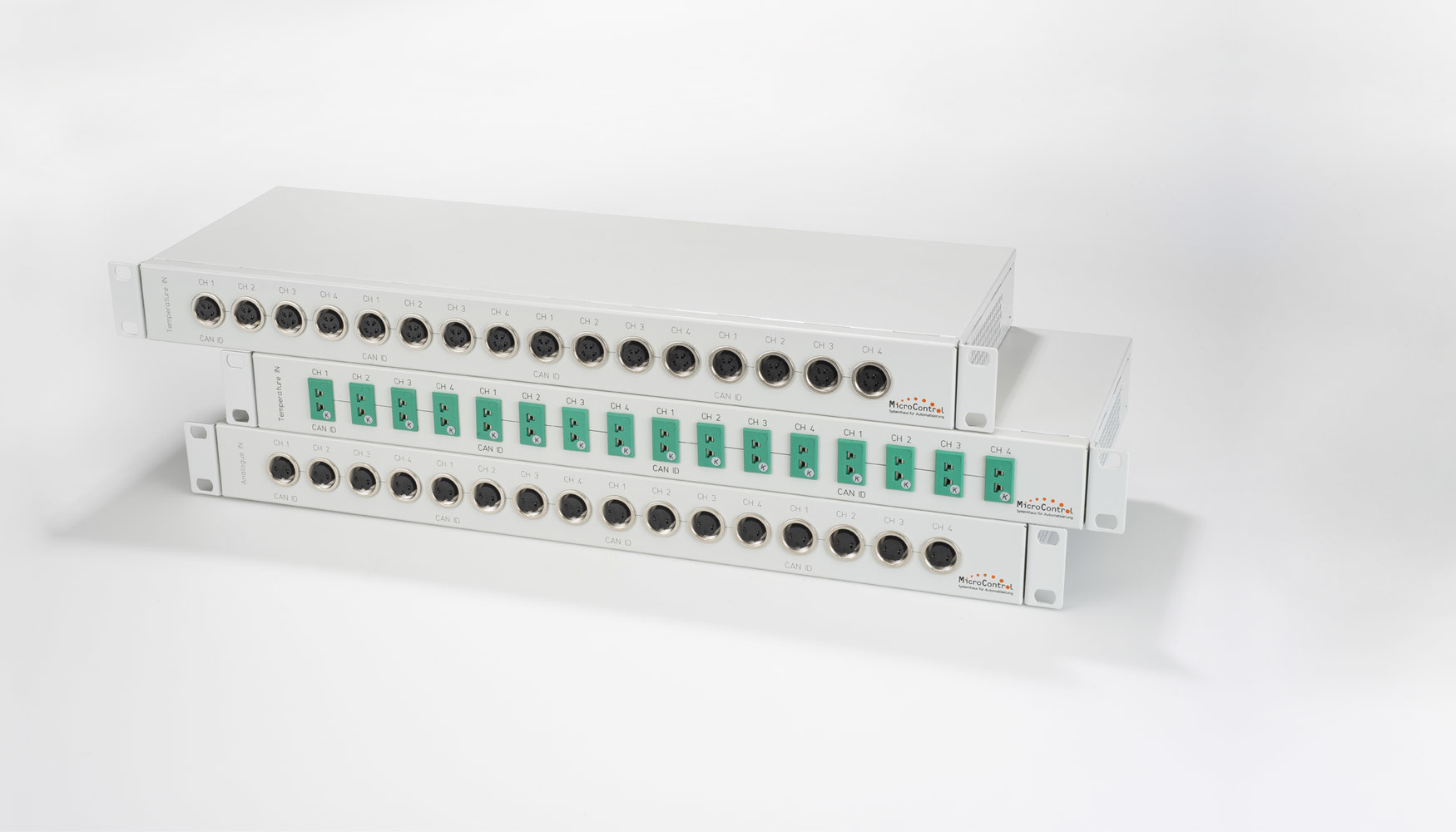

µLAB-19″-system family

µLAB.16.ai-19"

16-channel analogue input voltage

µLAB.16.ai-19"

16-channel analogue input current

µLAB.16.ti-19"

16-channel analogue input temperature thermocouple

µLAB.16.ti-19"

16-channel analogue input temperature RTD

µLAB.16.ai-19"

16-channel analogue input voltage

µLAB.16.ai-19"

16-channel analogue input current

µLAB.16.ti-19"

16-channel analogue input temperature thermocouple

µLAB.16.ti-19"

16-channel analogue input temperature RTD

Fieldbus CAN

The modules are equipped with a highspeed CAN interface. Protocols such as raw CAN, CANopen and J1939 are supported.

Connectivity

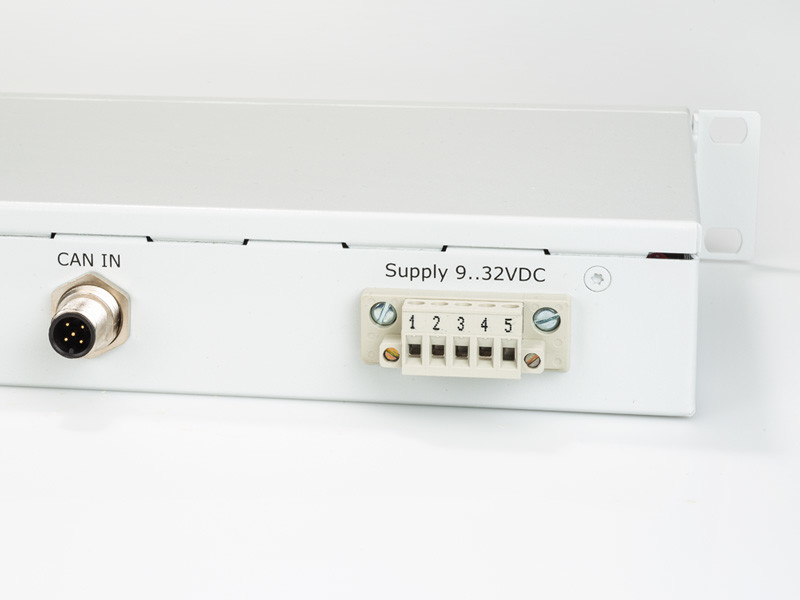

Signals are fed into the system by plug-in cable connections in the front plate. Connectors for supply voltage and fieldbus signals are placed in the back of the 19″ slide-in rack. Connectors will be suited according to our customers’ specifications.

19″-System

All electronic components are integrated in a 19″ slide-in rack featuring a high packing density.
